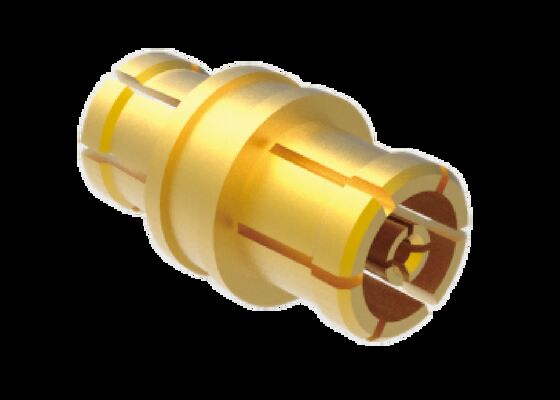

50Ω 40GHz SMPM Jack to Jack Adapter Aerospace RF Connectors with Low Insertion Loss
|
Szczegóły Produktu:
Zapłata:
|
Szczegółowy opis produktu
| Nazwa produktu: | Adapter żeński na żeński SMPM | Model: | SSMP-KK31 |
|---|---|---|---|
| Zakres częstotliwości: | 0,3 MHz-40GHz | Impedancja: | 50 Ω |
| DWV: | 500 V | Rezystancja izolacji: | ≥5000MΩ |
| Centralny dyrygent: | ≤8mΩ; Stop miedzi, pozłacany | Zewnętrzny dyrygent: | ≤3,5 mΩ; Stop miedzi, pozłacany |
| Izolator: | PTFE3, PTFE | VSWR: | ≤1,3 |
| Utrata wtrąceniowa: | ≤0,3dB | Temperatura: | -55°C ~125°C |
| Trwałość: | 500 cykli | ||
| Podkreślić: | 40GHz SMPM RF connector,50Ω aerospace RF adapter,low insertion loss SMPM jack |
||
50Ω 18GHz SMPM Jack to Jack Adapter Aerospace RF Connectors with Low Insertion Loss
The SMPM series connector is a subminiature push-on RF coaxial connector. It features compact size (smaller than the SMP series), light weight and wide operating frequency bandwidth, with a maximum operating frequency up to 50 GHz. The male connector is available in two interface types: full detent and smooth bore. Its blind-mate interconnection allows axial and radial floating of the mating structure. It is suitable for RF and microwave signal transmission as well as modular dense mounting applications, and is widely used in vehicle-borne, ship-borne and satellite-borne fields.
SMPM Design Features
- Compact design
- Frequency band operation up to 40GHz
- Rugged construction for reliability
- Available in multiple configurations: straight, right angle, bulkhead, PCB and flange mount options
- Low VSWR & Insertion loss
Interface of SMPM RF Coaxial Connectors
50Ω 40GHz SMPM Jack to Jack Adapter Aerospace RF Connectors with Low Insertion Loss
Model No.: SMPM-KK31 , with SMPM Adapter Length =5
Other different length SMPM Jack to Jack Adapters:
| Model No. | Length of SMP Jack to Jack Adapters | OD of SMPM |
| SSMP-KK31 | 5mm | 2.75mm |
| SSMP-KK41 | 4mm | 2.6mm |
| SSMP-KK170 | 4.55mm | 2.75mm |
| SSMP-KK171 | 3.8mm | 2.6mm |
| SSMP-KK204 | 6mm | 2.79mm |
| SSMP-KK216 | 6.9mm | 3.5mm |
| SSMP-KK326 | 11.7mm | 2.5mm |
Note: Please contact sales freely for detailed datasheet.
Note: Please check our catalog for more similar models according to your application.
Applications
Xi'an Elite Electronics specializes in systematic interconnection solutions for demanding industries including:
- Aerospace and aviation systems
- Navigation and radar equipment
- Communication systems
- Measurement instruments
- Electronics applications
Packaging & Shipping
Each SMPM adapter aerospace RF Connectors is carefully packaged to ensure protection during transportation:
We use reliable courier services for prompt delivery, providing customers with tracking information upon shipment.
