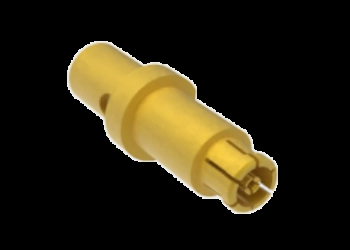

50Ω SMPM Male RF Connector 0.3MHz-40GHz 170V for Cable CXN3506
|
|
Szczegóły Produktu:
Zapłata:
|
Szczegółowy opis produktu
| Nazwa produktu: | SMPM męskie złącza kablowe | Model: | SSMP-K506-32 |
|---|---|---|---|
| Zakres częstotliwości: | 0,3 MHz-40GHz | Impedancja: | 50 Ω |
| Napięcie znamionowe: | 170 V | DWV: | 500 V. |
| Odporność na izolację: | ≥5000MΩ | dyrygent Centrum: | Stop miedziany, złoty |
| Zewnętrzny dyrygent: | Stop miedziany, złoty | Próbki: | Dostępne w magazynie |
| Podkreślić: | 50Ω SMPM male RF connector,SMPM RF connector 0.3MHz-40GHz,SMPM cable connector 170V |
||
50Ω SMPM Male RF Coaxial Connector 0.3MHz-40GHz 170V for Cable CXN3506
The SMPM coaxial connector features a compact design engineered for small package requirements, making it ideal for high data rate applications. Its superior shielding reduces signal interference, ensuring optimal transmission at elevated speeds.
When used with an SMPM female-to-female adapter, this connector system provides reliable board-to-board connections while compensating for radial and axial misalignments during installation.
Product Specifications
| Item | Value |
|---|---|
| Product Name | SMPM Male Cable Connector |
| Model | SSMP-K506-32 |
| Frequency Range | 0.3MHz-40GHz |
| Impedance | 50Ω |
| Rated Voltage | 170V |
| DWV | 500V |
| Insulation Resistance | ≥5000MΩ |
| Center Conductor | Copper Alloy, Gold Plated |
| Outer Conductor | Copper Alloy, Gold Plated |
| Mating Cable | CXN3506 |
Product Outline Dimensions (Unit: mm)
Applications
- Microwave communication systems
- Measurement equipment
- Aerospace applications
- Radar systems
- Electronics fields
Elite Electronic manufactures SMPM connectors using premium materials and rigorous quality control to ensure exceptional durability and reliability in extreme environments.
Packaging & Shipping
Each SMPM connector is carefully packaged in protective cartons to ensure safe transit. We use reliable courier services with tracking numbers provided for all shipments.
For model availability and additional series options, please contact us at sales3@xa-elite.com.cn.
Note: While some models are in stock, all catalog-listed models can be produced quickly upon request.
