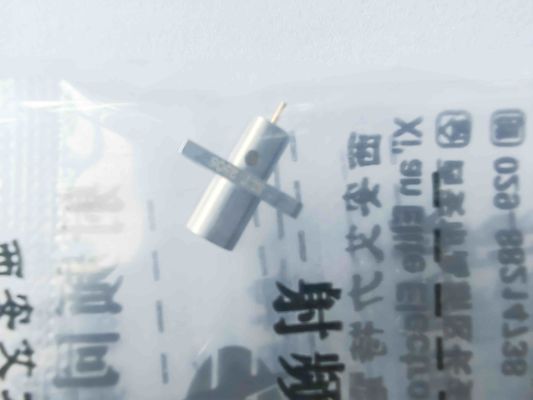

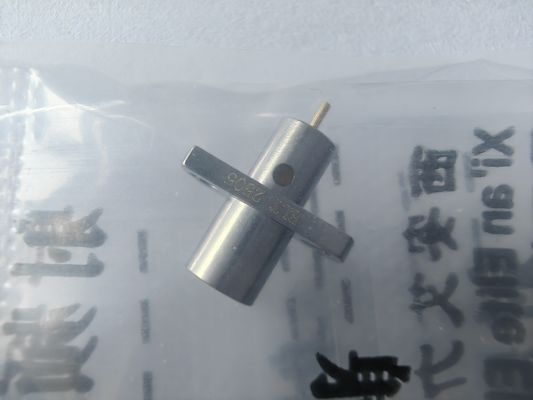

Stainless Steel SMP Male Plug 2 Hole Flange Mount Full Detent Microstrip Connector with Frequency up to 18GHz
|
Szczegóły Produktu:
Zapłata:
|
Szczegółowy opis produktu
| Product Name: | 2 hole flange SMP Male Connector | Model: | SMP-JFD30G-F |
|---|---|---|---|
| Frequency Range: | 0.3MHz-18GHz | Housing: | Stainless Steel, Passivition |
| Contacts: | Copper Alloy, Gold Palting | Insulator: | PTFE |
| Mount Style: | 2 hole flange mount | Insulation Resistance: | >5000MΩ |
| DWV: | 500V | Impendence: | 50Ω |
| Engagement Depth: | 2.79 | Temperature: | -55℃～+125℃ |
| Stock: | Not available |
Product Description:
The SMP connector is a push-on subminiature RF coaxial connector designed for applications of high-frequency up to 40Ghz . It is known for its compact size and reliable performance, making it ideal for use in various electronic devices, systems, communicatoin, stacom, radar and so on. SMP connectors can be using for cable , bulkhead, solder, flange mount, or PCB mount methods etc, ensuring strong and durable connections with excellent mechanical stability and electrical performance. The male plug have three interface: full detent, limited detent and smooth bore(including catcher's mitt).
The outline demension of Stainless Steel SMP Male Full Detent Connector (Unit: mm): SMP-JFD30G-F
The Recommend Mount Hole Size:
Note: It is recommended to use M1.6 screws, and the diameter of the screw cap should be less than or equal to 2.6mm.
For the Stainless Steel SMP Male Plug 2 hole Flange Mount Connector: SMP-JFD30G series, we also have the smooth bore type SMP-JFD30G-S.
Other Stainless Steel SMP Male Plug 2 hole flange mount Connector Similar Model:
Note3: Engagement Depth: 2.79mm
Note1: Engagement Depth: 2.79mm
More products, please contact us freely for the products catalog sales3@xa-elite.com.cn
Applications:
Customization:
Product Customization Services for SMP RF Connector:
Brand Name: ELT
Price: Depending on the quantity
Please send us the drawing and we will let our engineer to arrange the evaluation or we recommend us the alternative model.
Packing and Shipping:

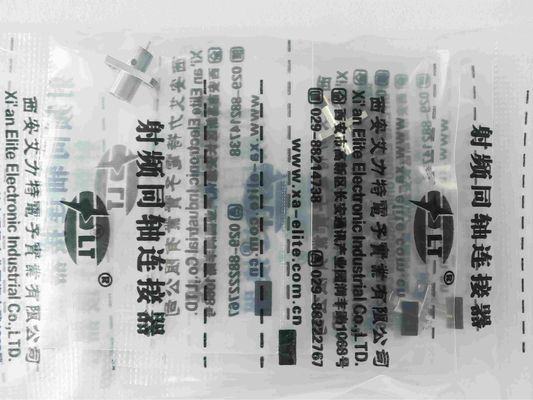

Packaging and Shipping for SMP RF Connector:
The SMP RF Connector comes securely packaged in a small cardboard box to ensure its protection during shipping. The box is labeled with the product name and specifications for easy identification.
For shipping, the SMP RF Connector is placed in a padded envelope or box, depending on the quantity ordered. It is then sealed and labeled with the shipping address and tracking information for efficient delivery.
