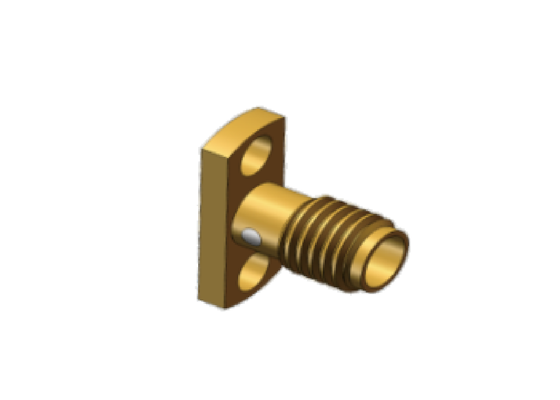

Brass Gold finish Jack Mini SMA Panel Mount SSMA RF Connectors 18GHz 50ohm
|
Szczegóły Produktu:
Zapłata:
|
Szczegółowy opis produktu
| Nazwa produktu: | SSMA RF Connector | Model: | SSMA-KFD160 |
|---|---|---|---|
| Zakres częstotliwości: | 0,3 MHz-18 GHz | Impedancja: | 50 Ω |
| DWV: | 750 V | Rezystancja izolacji: | ≥5000MΩ |
| Centralny dyrygent: | Wykończenie z mosiądzu i złota | Zewnętrzny dyrygent: | Wykończenie z mosiądzu i złota |
| Kabel godowy: | Kabel CXN3506 | Izolatory: | PTFE |
| Próbki: | w magazynie | ||
| Podkreślić: | Brass Gold SSMA RF Connector,Mini SMA Panel Mount Connector,18GHz 50ohm RF Connector |
||
Brass Shell Gold Plating Jack Mini SMA Panel Mount SSMA RF Connectors 18GHz 50ohm
Product Introduction
The SSMA RF connector (other name Mini SMA) is a compact iteration of the standard SMA, offering a 30% size reduction without compromising performance. Engineered with a 10-36UNF-2
threaded interface and 50Ω impedance, it ensures reliable connectivity in space-constrained applications. Supporting frequencies up to 30GHz, the SSMA series delivers excellent
electrical performance, making it the ideal solution for high-density microwave and RF systems requiring miniaturization.
Key Features:
- Compact design - 30% smaller than standard SMA connectors
- Wide frequency band operation up to 30GHz
- High reliability for demanding applications
- Available in multiple configurations: straight, right angle, bulkhead, and flange mount options
- Stainless steel screw sleeve/barrel for durability
Interface of SSMA RF Connectors
Mini SMA Jack RF Coaxial 2-Hole Flange Mount Connector Dimenstion:
Model No.: SSMA-KFD160
| Model | L | L1 | L2 | L3 | D | D1 | D2 | Note |
| SSMA-KFD105 | 9.7max |
1.9 |
4.8max | 8.6 | 0.5 | 12.3max | 2.6 | |
| SSMA-KFD105G | 9.7max | 1.9 | 4.8max | 8.6 | 0.5 | 12.3max | 2.6 | Stainless Steel Shell |
| SSMA-KFD108G | 9.7max | 1.9 | 4.8max | 8.3 | 0.4 | 12.3max | 2.4 | Stainless Steel Shell |
| SSMA-KFD109 | 9.7max | 2 | 4.8max | 8.6 | 0.32 | 12.3max | 2.4 | |
| SSMA-KFD111G | 9.7max | 2 | 4.8max | 8.3 | 0.32 | 12.3max | 2.4 | Stainless Steel Shell |
| SSMA-KFD112 | 16.7max | 1.9 | 5.1max | 8.3 | 0.4 | 12.3max | 2.4 | |
| SSMA-KFD129G | 9.7max | 1.9 | 4.8max | 10.2 | 0.4 | 14.1max | 2.6 | Stainless Steel Shell |
| SSMA-KFD131 | 9.7max | 1.9 | 4.8max | 8.3 | 0.4 | 12.3max | 2.4 | |
| SSMA-KFD131-Y1 | 9.7max | 1.9 | 4.8max | 8.3 | 0.4 | 12.3max | 2.4 | |
| SSMA-KFD141G | 13.4max | 1.9 | 4.8max | 8.3 | 0.45 | 12.3max | 2.4 | Stainless Steel Shell |
| SSMA-KFD157G | 9.7max | 1.9 | 4.8max | 8.6 | 0.4 | 12.3max | 2.4 | Stainless Steel Shell |
| SSMA-KFD159 | 14.4max | 2.1mm | 4.8max | 8.3 | 0.5 | 12.3max | 2.2 | |
| SSMA-KFD160 | 9.7max | 2 | 4.8max | 10.2 | 0.45 | 14max | 2.2 | |
| SSMA-KFD161 | 9.7max | 2 | 4.8max | 8.3 | 0.45 | 12.3max | 2.2 | |
| SSMA-KFD162 | 9.7max | 2 | 4.8max | 11 | 0.45 | 14.9max | 2.2 | |
| SSMA-KFD171G | 9.7max | 1.9 | 5.8max | 9 | 0.4 | 12.8max | 2.2 | Stainless Steel Shell |
| SSMA-KFD213 | 9.7max | 2.1 | 4.8max | 8.3 | 0.38 | 12.3max | 2.4 | |
| SSMA-KFD221 | 9.7max | 1.7 | 4.9max | 8.6 | 0.4 | 12.8max | 2.6 |
Note: Please check our catalog for more similar models according to your application.
