| Nazwa produktu: | Żeńskie złącze koncentryczne RF SMP | Impedancja: | 50 omów |
|---|---|---|---|
| świadectwo: | CE Rohs | Płeć: | Kobieta/Jack |
| Długość życia: | 500 cykli | Budowa ciała: | Prosty kąt |
| Materiał: | Mosiądz | Metoda montażu: | Z kablem |
| Zakres częstotliwości: | Prąd stały ~ 40 GHz |

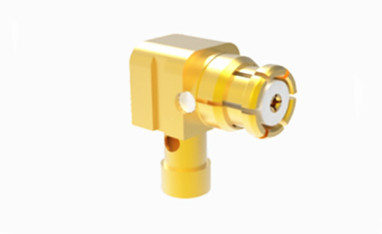

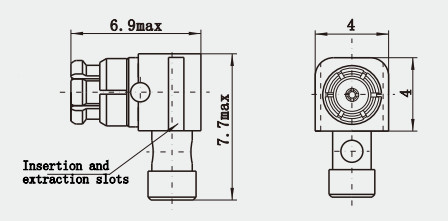

Right Angle SMP Female RF Connector for CXN3657/MF151A Cable
SMP is a miniature push-on or snap-fit coupling RF coaxial connector that boasts features such as compact size, lightweight, excellent seismic performance, and wide operating bandwidth, among others. It has an operational frequency range that extends up to 30GHz (our SMP connector product can reach up to 40GHz). Additionally, the plug offers three interface forms - full detent, limited detent, and smooth bore (including with braking).
SMP connectors are particularly well-suited for any application that requires miniaturization and high-frequency signal transfer due to their structural compactness and high-performance characteristics.
| Impedance | 50Ω | |
| Frequency Range | DC~40GHz | |
| Rated Voltage | 170VRMS* | |
| Insulation Resistance | ≥2000MΩ | |
| Dielectrics Voltage-resistance | 500VRMS* | |
| Center Resistance | Outer conductor | Normal≤2.5mΩ, Sealing≤4mΩ |
| Center conductor | Normal≤6mΩ, Sealing≤26mΩ | |
| VSWR | ≤1.3 | |
| Center Conductor | Male | Sn-P Bronze,gold plated |
| Female | Beryllium bronze, gold plated | |
| Elastic Contact | Beryllium bronze | Gold plated |
| Shell and other Metal Parts | Brass Stainless steel | Gold plated Passivation |
| Insulators | Glass sintering/PTFE/PEI | |
| Hermetic Product Leakage Rate | 1.01325×10-3Pa·cm3/s | |
Features and Benefits:
1. Compact Size: SMP connectors are designed to be extremely compact, making them ideal for applications where space is at a premium.
2. Lightweight: Due to their miniaturized design, SMP connectors are lighter compared to other types of RF connectors.
3. Excellent Shock Resistance: The mechanical design of SMP connectors enables them to withstand vibrations and impacts, making them suitable for high-shock environments.
4. Broad Operating Bandwidth: SMP connectors support a wide frequency range, with standard operation up to 30GHz, and some products extending up to 40GHz.
Applications:
1. Security Systems: SMP connectors are sometimes also used in radio equipment for security and surveillance systems, such as in wireless cameras and alarm systems.
2. Consumer Electronics: Some high-end consumer electronics, like professional photography and video equipment, may also use SMP connectors to maintain high-quality signal transmission.
3. Instrumentation: In various scientific and industrial instruments, SMP connectors are used for precise transmission of high-frequency signals to ensure data accuracy and reliability.
Product Cataloge:
* RF Adapter
* Waveguide To Coaxial Adapter
* Glass-to-metal Hermetic Seals
* J30J Series Connector
* Microwave Rotary Joints
* RF Cable Assemblies
* SMA/SSMA RF Connector
* SMP/SSMP RF Connector
* Millimeter Wave Connectors(2.4mm, 2.92mm)
Packaging Details:
* Standard Export Carton
* According to customers' requirements
NOTE:
We have over 10,000 types of SMP connector, if the connector you are using is not found, please contact us with your details.
